Stainless Steel 1/2 Inch Lost Wax Casting 3PC Ball Valve
1. This is stainless steel 1/2inch lost wax casting 3PC ball valve.
2. Stainless steel 3PC ball valve is widely used in oil, natural gas, coal and ore mining, refining and processing and pipeline transportation system, chemical products, medicine and food production, hydropower, thermal power and nuclear power production system, water supply and drainage, heat supply and gas supply system of urban and industrial enterprises, drainage and irrigation system of farmland, and metallurgical production system.
3. 3PC ball valve is an important mechanical product closely related to production and construction, national defense construction and people's life.
4. The 3PC ball valve is used to cut off or connect the medium flow in all kinds of pipeline systems.
5. The 3PC internal thread ball valve and butt welding 3PC ball valve are suitable for cutting off or connecting the medium in the pipeline with PN1.0 ~ 4.0Mpa, working temperature - 29 ~ 180 ℃ (the sealing ring is reinforced polytetrafluoroethylene) or - 29 ~ 300 ℃ (the sealing ring is para polyphenylene).
6. Different materials can be used for water, steam, oil, nitric acid, acetic acid and other media. The predetermined program is delivered to each designated point.
Material List
| ITEM | PART | MATERIAL | QTY |
| 1 | BODY | A216-WCB | A351-CF8 | A351-CF8M | 1 |
| 2 | BALL | 304 | 304 | 316 | 1 |
| 3 | SEAT | PTFE/RPTFE | 2 |
| 4 | THRUST WASHER | PTFE | 1 |
| 5 | GASKET | PTFE | 2 |
| 6 | PACKING | PTFE | 1 |
| 7 | GLAND NUT | 304 | 1 |
| 8 | STEM | 304 | 304 | 316 | 1 |
| 9 | SPRING WASHER | 304 | 1 |
| 10 | NUT | 304 | 1 |
| 11 | HANDLE | 304 | 1 |
| 12 | LOCK | 304 | 1 |
| 13 | HANDLE COVER | PLASTIC | 1 |
| 14 | CAP | A216-WCB | A351-CF8 | A351-CF8M | 2 |
| 15 | SPRING WASHER | 34 | 304 | 304 | 4(6) |
| 16 | NUT | 304 | 4(6) |
| 17 | BOLT | 304 | 304 | 304 | 4(6) |
Dimension Table
| SIZE | Φd | L | H | P | D | W | N.M | KGS |
| DN6 | 1/4’’ | 12.5 | 51 | 43.5 | 9.6 | 14.1 | 103 | 5 | 0.28 |
| DN10 | 3/8’’ | 12.5 | 51 | 44.5 | 9.6 | 17.6 | 103 | 5 | 0.28 |
| DN15 | 1/2’’ | 15 | 63 | 50 | 9.6 | 21.7 | 103 | 6 | 0.45 |
| DN20 | 3/4’’ | 20 | 71 | 59 | 12.7 | 27.1 | 127 | 10 | 0.61 |
| DN25 | 1’’ | 25 | 80 | 61 | 12.7 | 33.8 | 127 | 12 | 0.80 |
| DN32 | 1-1/4’’ | 32 | 94 | 79 | 12.7 | 42.5 | 154 | 17 | 1.45 |
| DN40 | 1-1/2’’ | 38 | 103 | 83 | 12.7 | 48.6 | 154 | 30 | 1.72 |
| DN50 | 2’’ | 50 | 126 | 94 | 15.8 | 61.6 | 195 | 48 | 2.73 |
| DN65 | 2-1/2’’ | 62 | 158 | 135 | 15.8 | 78 | 245 | 58 | 5.45 |
| DN80 | 3’’ | 76 | 179 | 144 | 25 | 90 | 245 | 95 | 7.65 |
| DN100 | 4’’ | 94 | 213 | 149 | 25 | 115.2 | 285 | 125 | 15.79 |

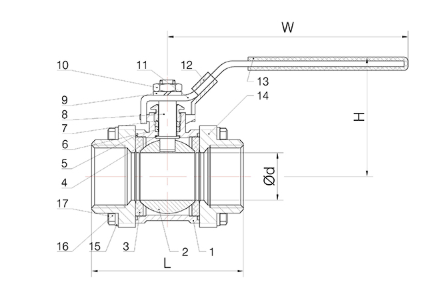

Drawing
